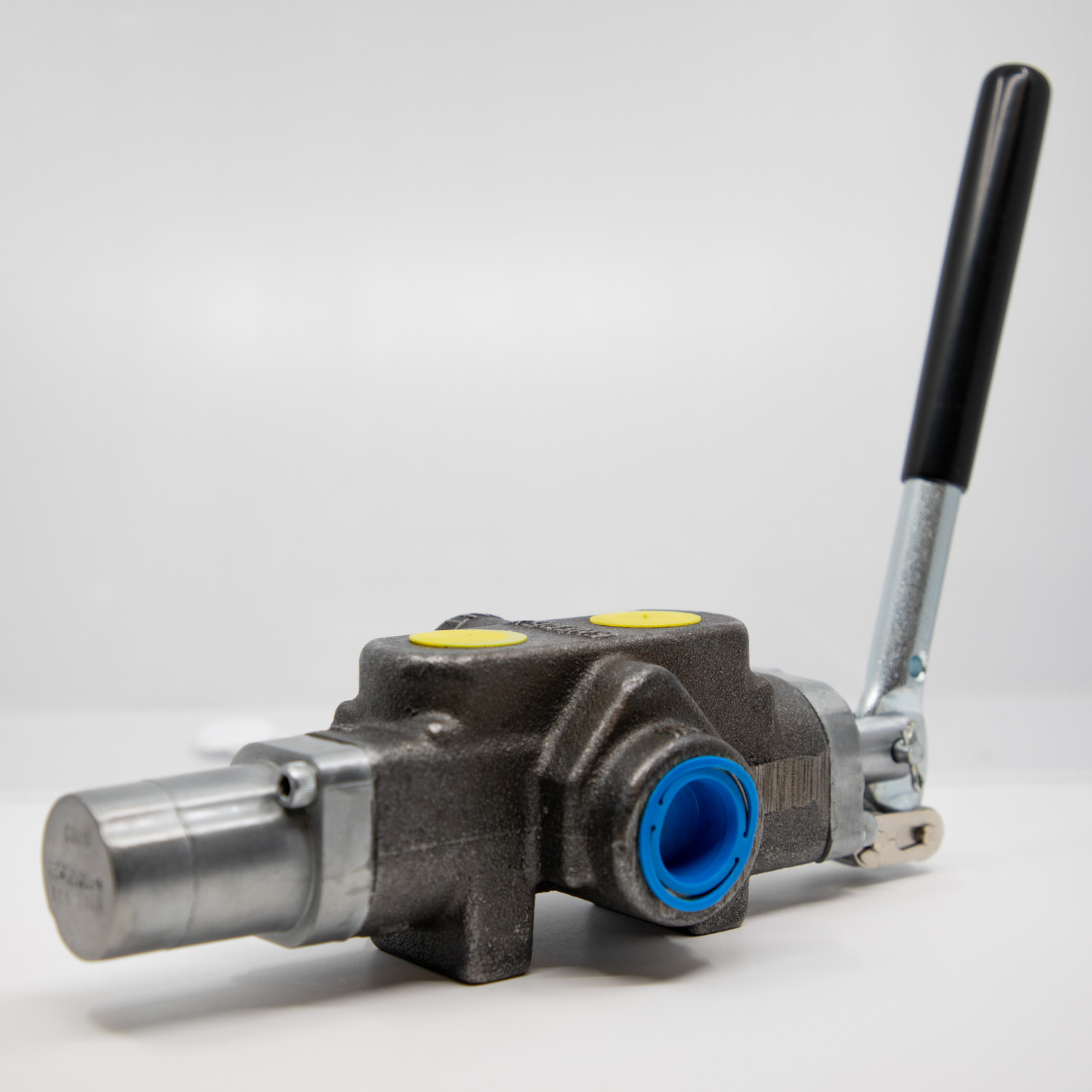

The USA’s most popular log splitter valve. Specified by more log splitter OEM’s than any other brand. Spring centered in one direction, and pressure released detent in the other direction. Automatically kicks back to neutral when cylinder completes stroke. Includes built-in adjustable inlet relief valve. Handle can be installed in either “up” or “down” position. For use with up to five (5) inch bore cylinders. Made in the USA.
- Zero (0) to 20 gpm (76 lpm) three-position, four-way, single-spool hydraulic directional control valve
- Rated for 2,500 psig (172 bar) working pressure
- Linear handle type operator
- Spring-centered from “extend” position
- Detent with hydraulic kickout from “retract” position
- Inlet relief valve pre-set to 2,000 psig +/- 200 psig (138 bar +/- 14 bar), but adjustable
- Pre-set kickout pressure of 750 psig to 2,000 psig (52 bar to 138 bar)
- 1/2″ NPTF work ports
- 3/4″ NPTF inlet and outlet ports
NOTE! Maximum flow rate for the inlet relief valve is 10 gpm (38 lpm)
IMPORTANT!!! Pressure at “T” (return) port in excess of 200 psig (14 bar) may interfere with proper operation of valve. Consult factory if back pressure of over 200 psig (14 bar) is present.
**Detent cover assembly includes screws and o-ring
Torque mounting screws (items 6 & 9) to 70-90 in-lbs.
Shop for the part you need
Filters Sort results
Reset Apply

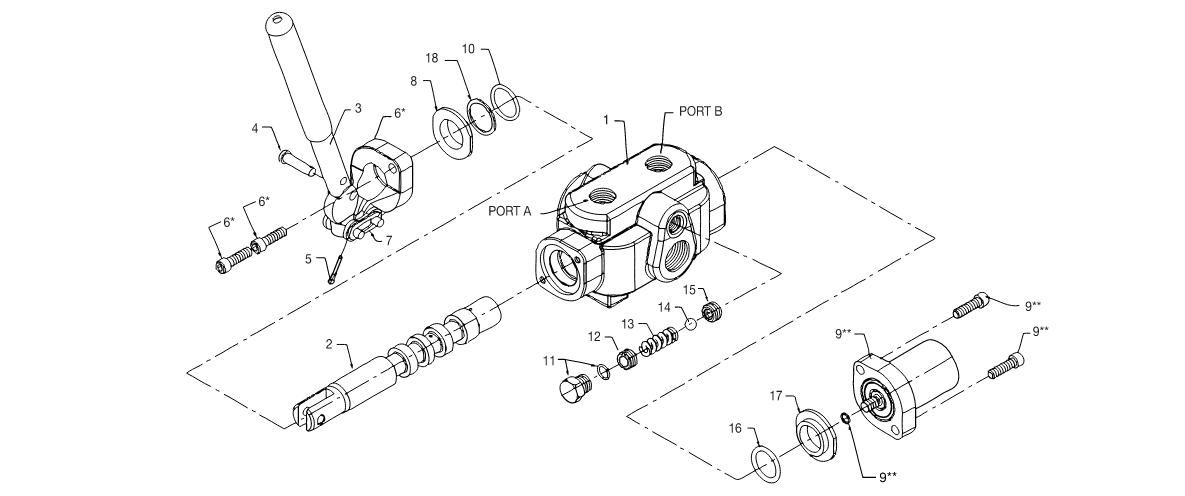

Ref. No. | Part Number | NO. Req. | Description | Price | Qty | Add To Cart |
|---|---|---|---|---|---|---|
0C000908 | 1 | Log Splitter Valve, 4-way tandem center with relief valve, detent hold with hydraulic kickout in “A” and Spring centered to neutral from “B” | $125.00 | |||
1 | 1 | CONTROL VALVE BODY (NOT SOLD SEPARATELY) | ||||
2 | 1 | VALVE SPOOL (NOT SOLD SEPARATELY) | ||||
3 | 0B005146 | 1 | CONTROL LEVER | $14.17 | ||
4 | 00080409 | 1 | PIN CLEVIS | $2.87 | ||
5 | 00080414 | 1 | PIN STEEL COTTER | $2.61 | ||
6 | 26264B | 1 | LEVER BRACKET WITH SCREWS | $18.86 | ||
7 | 00082832 | 1 | CHAIN CONNECTING LINK | $9.43 | ||
8 | 0A004912 | 1 | SEAL RETAINER | $5.19 | ||
9 | 36561B | 1 | DETENT COVER ASSEMBLY WITH SCREWS AND INSTRUCTIONS | $50.49 | ||
10 | 1 | O-RING (INCLUDED IN SEAL KIT, P/N 0A007238) | ||||
11 | 00082527 | 1 | PLUG ORING BOSS SAE | $4.79 | ||
12 | 00082515 | 1 | SCREW SET SLT | $2.70 | ||
13 | 19985A | 1 | SPRING WITH CAP ASSEMBLY | $2.91 | ||
14 | 19282A | 1 | BALL STEEL | $2.73 | ||
15 | 19902A | 1 | VALVE SEAT | $3.70 | ||
16 | 1 | O-RING (INCLUDED IN SEAL KIT, P/N 0A007238) | ||||
17 | 0A007093 | 1 | SEAL RETAINER | $9.00 | ||
18 | 1 | BACK-UP RING (INCLUDED IN SEAL KIT, P/N 0A007238) | ||||
N/A | 0A002851 | 1 | CONTROL LEVER ASSEMBLY | $26.07 | ||
N/A | 0A007238 | 1 | SEAL KIT, VALVE | $15.04 | ||
N/A | 0A002900 | 1 | GRIP BLACK | $2.62 | ||
N/A | 26264B | 1 | LEVER BRACKET WITH SCREWS | $18.86 |
