Selector Valves

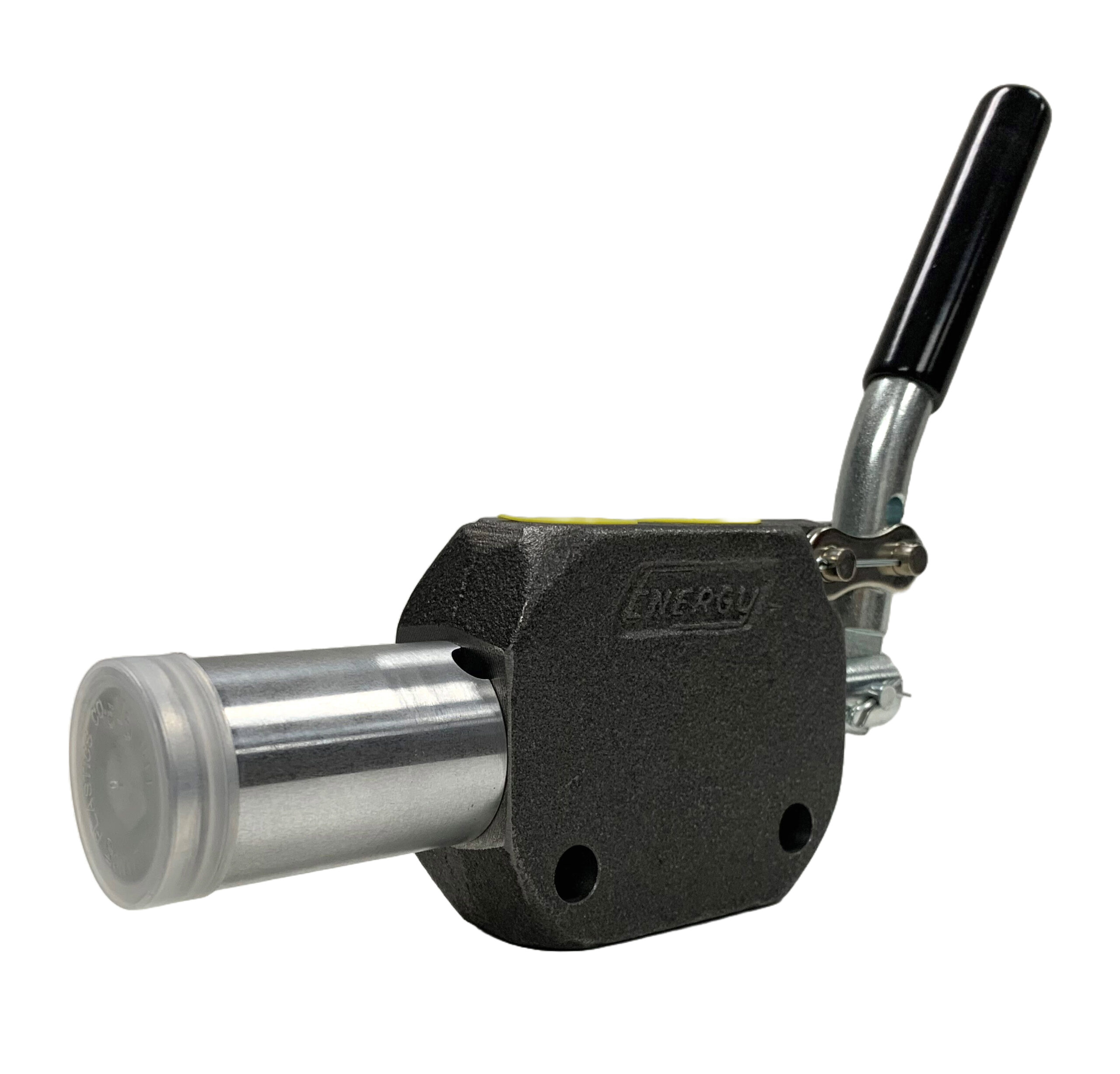

Two-position, three-way selector valves; for flows up to 30 GPM and working pressures up to 3,000 psig.

These three-way directional valves can be used in a wide variety of circuitry and system configurations. Flow is controlled by a simple pull or push of the control knob or handle. The spools are held in position by the frictional force of their o-rings, effectively creating a detent in either position (except for spring-return models).

Product Literature

Assembly Drawings/Parts Lists for Models 0B001152, 0B001153, & 0B001138

Assembly Drawings/Parts Lists for Models 0B001180, 0B001239, 32098C, 0B001252, & 40440B

Assembly Drawings and Parts Lists for Models 0B001155, 0B001156, and 0B001157

Shop for the part you need

Sort by
Filters Sort results
Reset Apply
Part Number
Description
Max Pressure
Price
Qty
Add To Cart
0B001152
Two Position Detented Selector Valve with Control Knob; 1/2″ NPTF Ports; 20 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$69.69
Max:
Min: 1
Step: 1
Add To Cart
0B001138
Two Position Detented Float Control Selector Valve with Control Knob; 1/2″ NPTF Ports; 20 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$144.33
Max:
Min: 1
Step: 1
Add To Cart
0B001153
Two Position Selector Valve with Spring Return and Control Knob; 1/2″ NPTF ports; 20 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$110.37
Max:
Min: 1
Step: 1
Add To Cart
0B001155
Two Position Detented Selector Valve with Control Handle; 1/2″ NPTF Ports; 20 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$107.08
Max:
Min: 1
Step: 1
Add To Cart
0B001156
Two Position Selector Valve with Spring Return and Control Handle; 1/2″ NPTF Ports; 20 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$125.84
Max:
Min: 1
Step: 1
Add To Cart
0B001252
Two Position Detented Selector Valve with Control Knob; 3/4″ NPTF Ports; 30 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$375.01
Max:
Min: 1
Step: 1
Add To Cart
0B001239
Two Position Detented Selector Valve with Control Handle; 3/4″ NPTF Ports; 30 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$208.78
Max:
Min: 1
Step: 1
Add To Cart
0B001180
Two Position Detented Float Control Selector Valve with Control Handle; 3/4″ NPTF Ports; 30 gpm (114 lpm) Flow Rating
3000 psig
(207) Bar
$154.74
Max:
Min: 1
Step: 1
Add To Cart
