Rotary Actuation Directional Control Valves

Rotary actuated directional control valves; for flows up to 20 GPM and working pressures up to 2,500 psig.

1/2″ NPTF Ports

3/4″ NPTF Ports

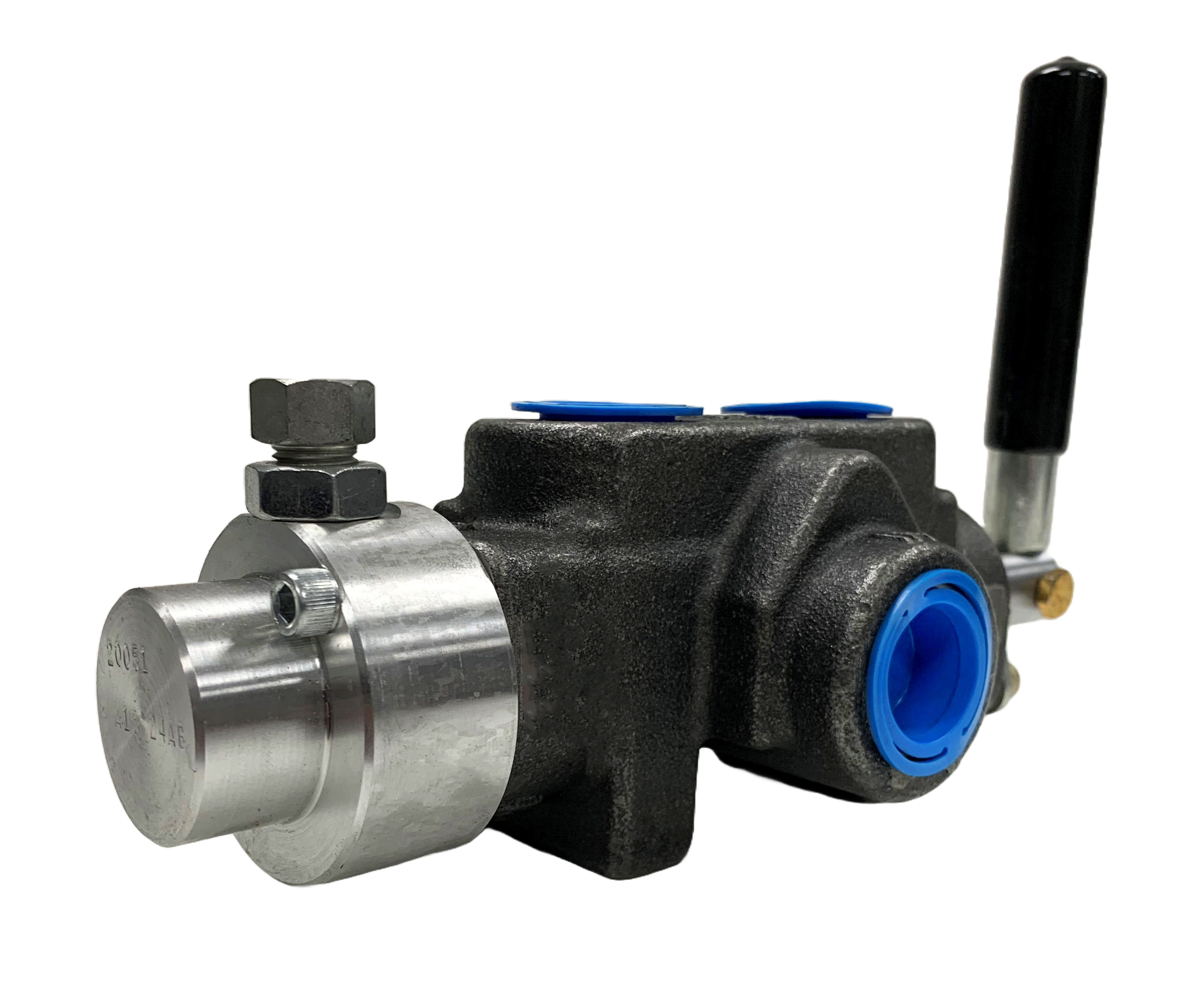

CVR Series

These units are designed so that the valve handle is rotated to actuate the spool, as opposed to shifting the spool axially. This provides finer metering control. These valves incorporate a mechanical detent in the neutral position, but should be manually held in their operating positions. NOTE: The maximum recommended flow rate for the internal relief valve at 2,500 PSIG (172 bar) is 10 GPM (38 LPM).

CAUTION: Relief valve pressure adjustments should not be made while the system is under pressure.

WARNING: These valves do not contain load checks and therefore should not be used in lifting applications unless some other means of holding the load is provided by the customer.

Product Literature

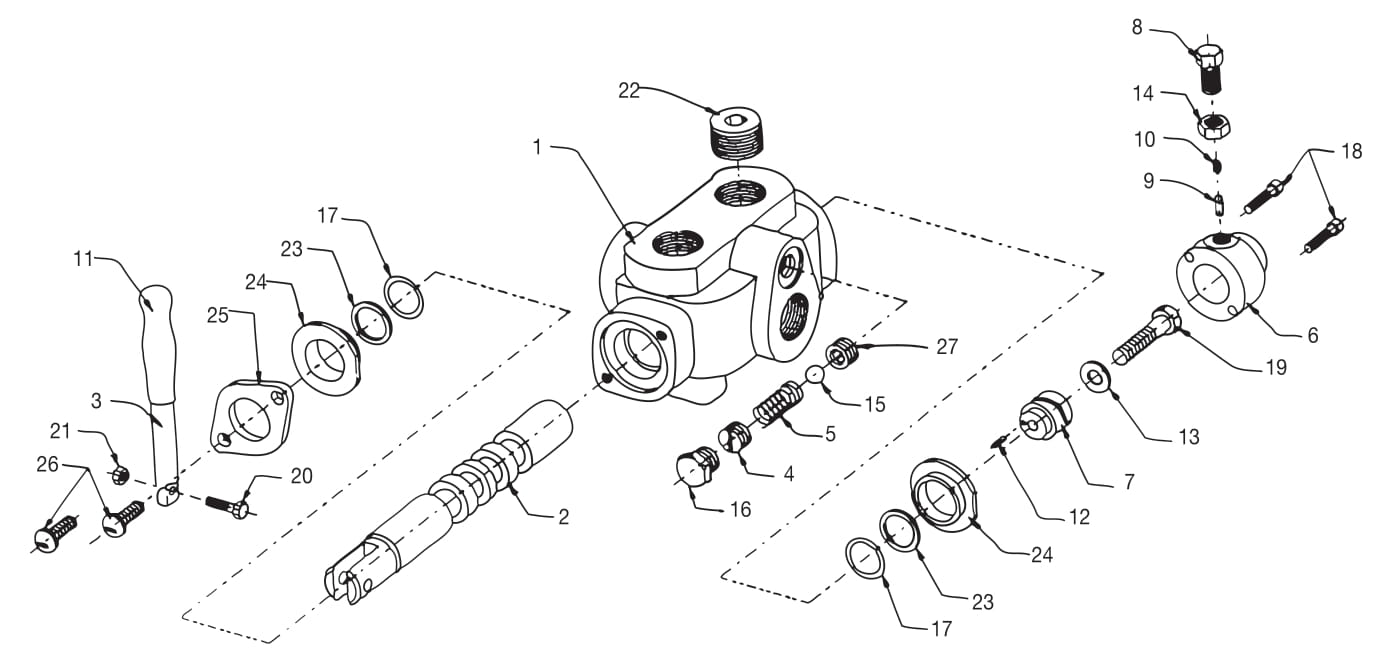

Instructions, Assembly Drawing, and Parts List for Open-Center Models

Instructions, Assembly Drawing, and Parts List for Closed-Center Models
  • Model CVR-100 (3-Way)
  • Model CVRM-100 (3-Way)
  • Model CVR-200 (4-Way)
  • Model CVRM-200 (4-Way)

Shop for the part you need

1/2″ NPTF Ports

Sort by
Filters Sort results
Reset Apply
Part Number
Description
Max Pressure
Price
Qty
Add To Cart
00020050
CVR-200; Rotary Spool Four-Way Tandem Center with Relief Valve; 1/2″ NPTF Ports
2500 psig
(172 bar)
$184.30
Max:
Min: 1
Step: 1
Add To Cart
00010219
CVRC-200; Rotary Spool Four-Way Closed Center – No Relief Valve; 1/2″ NPTF Ports
2500 psig
(172 bar)
$231.61
Max:
Min: 1
Step: 1
Add To Cart
00010240
CVRM-200; Rotary Spool Four-Way Open Center with Relief Valve; 1/2″ NPTF Ports
2500 psig
(172 bar)
$206.00
Max:
Min: 1
Step: 1
Add To Cart

3/4″ NPTF Ports

Sort by
Filters Sort results
Reset Apply
Part Number
Description
Max Pressure
Price
Qty
Add To Cart
00020051
CVR-200; Rotary Spool Four-Way Tandem Center with Relief Valve; 3/4″ NPTF Ports
2500 psig
(172 bar)
$191.90
Max:
Min: 1
Step: 1
Add To Cart
00010220
CVRC-200; Rotary Spool Four-Way Closed Center – No Relief Valve; 3/4″ NPTF Ports
2500 psig
(172 bar)
$649.13
Max:
Min: 1
Step: 1
Add To Cart
00010241
CVRM-200; Rotary Spool Four-Way Open Center with Relief Valve; 3/4″ NPTF Ports
2500 psig
(172 bar)
$592.36
Max:
Min: 1
Step: 1
Add To Cart
